PX501

...... 10.1” Fully Rugged Tablet

To offer you maximum performance for specific tasks, the new PX501 packs the advanced 13th Gen Intel® i5/i7 processor, ultrafast 5G connectivity and a full complement of I/O ports.

The New 10.1-inch Rugged Tablet

13th generation Intel® Core™ i5 processor
IP65, MIL-STD-810H and MIL-STD-461G certified
Advanced display with high brightness and hyper dimming technology to adapt different ambient-light conditions
WiFi 6E & 5G supported
Hot-swap battery plus fast charging offers near indefinite capacity
A wealth of I/O ports and expansion options fulfill field use

The Transformer
Workstation

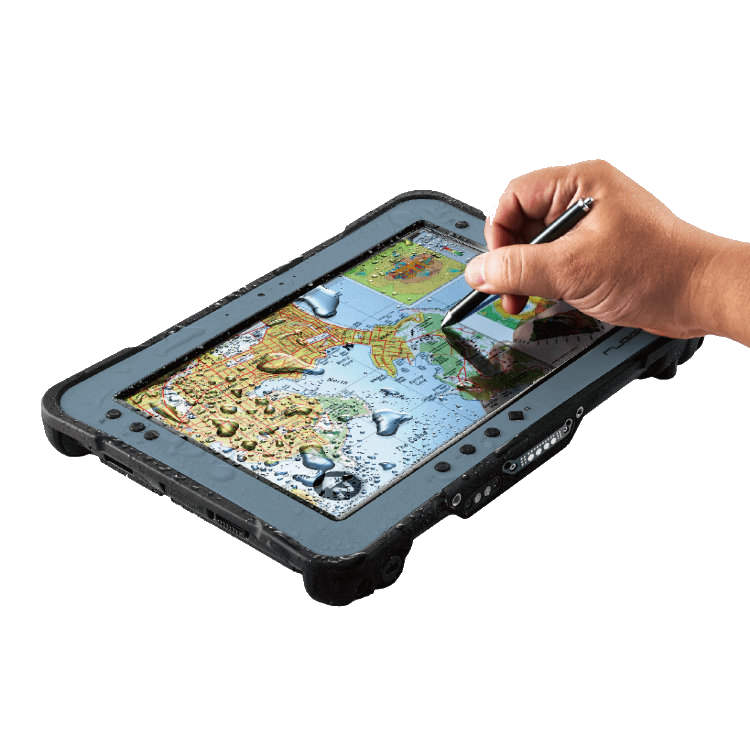

Integrated with advanced touch technology, PX501 avoids unintended touches like hand palms, water mist, and rain, while ensuring accurate data input. Paired with an IP54 digitizer pen or 2mm hard tip stylus, it offers precise touchscreen interaction and a smooth writing experience. With Gorilla Glass and glove touch functionality, PX501 is designed to resist damage and meet the demands of mobile workers in the field.

Enhanced Visibility

RuggON PX501 is purpose-built for mobile workers to perform task from day to night. Like all its siblings, this device provides optimal visibility in all ambient light conditions, thanks to the 1000 nits high brightness display and hyper dimming technology.

Unlimited
Connectivity

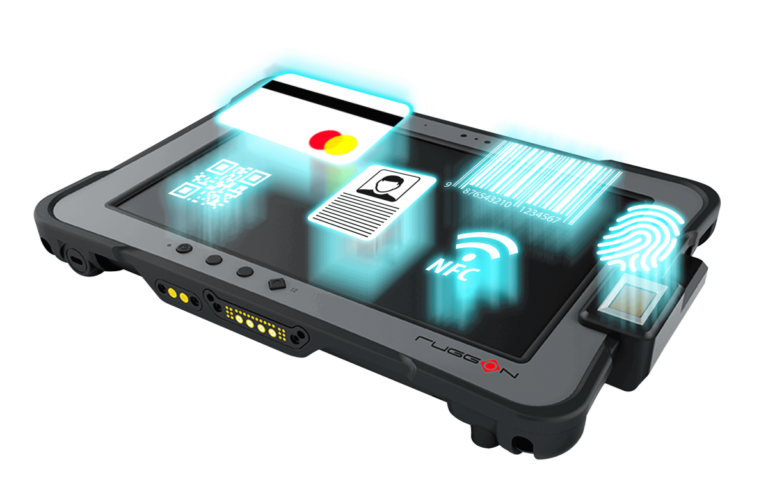

The PX501 is uncompromisingly rugged, featuring numerous I/O ports and expansion options for various applications. It includes a fingerprint reader, smart card reader, MRZ reader, and an integrated 2D barcode reader with optional OCR for passport scanning and identity detection. Additionally, its snap-on connector is customizable.

A Perfect Link@
Anytime, Anywhere

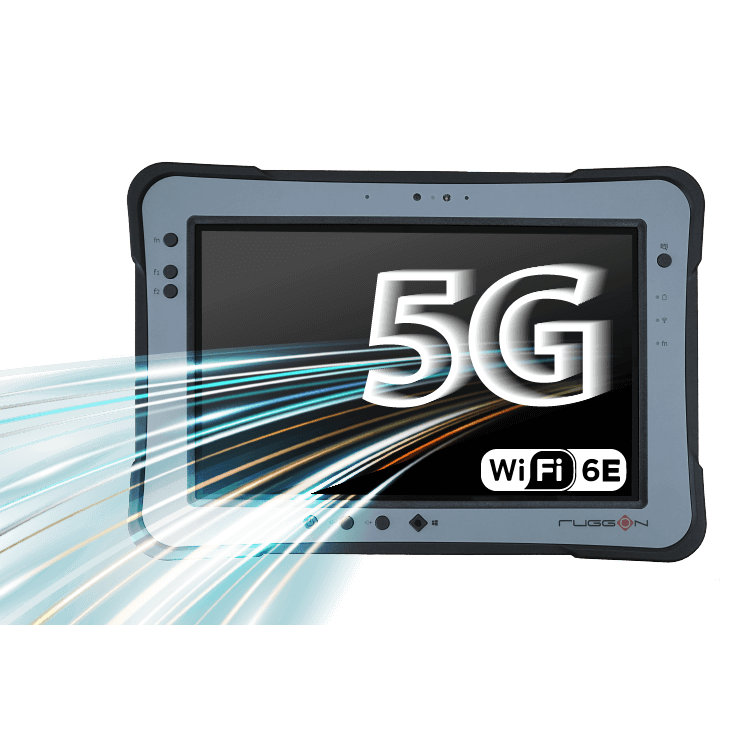

Featuring the latest communication technology, this device offers mobile workers precise positioning, faster processing, broader coverage, and more stable data transfers, even near buildings or trees. Its connectivity is further enhanced by a switchable dual pass-through connector.

CASE STUDY

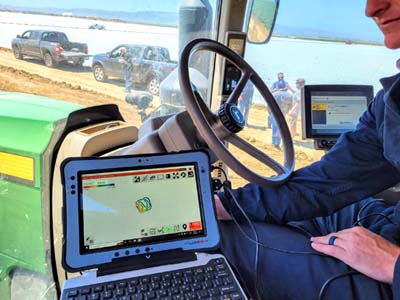

A large field service company needed a durable and reliable computing solution for its technicians. These technicians work in harsh environments, including extreme weather conditions and remote locations. The company required a device that could withstand rough handling, provide excellent connectivity, and offer robust performance.

New 10.1-inch Rugged Tablet PX501:

Satellite Connected Edition PX501 sAT:

System	Intel® Core™ i5-1335UE Intel® Core™ i7-1365UE Intel® Processor U300E 8GB DDR5 SDRAM , optional 16/32GB DDR5 SDRAM 128GB PCIE M.2 SSD, optional 256GB/512GB/1TB PCIE M.2 SSD OS supports Windows 11 GAC
Durability	IP65, MIL-STD-810H and MIL-STD-461G certified Vibration, shock and 5′ drop resistance Operating temperature : -20° C to +60° C
Display	10.1” TFT LCD WUXGA (1920 x 1200), Gorilla Glass 1000 nits sunlight readable with hyper dimming option Capacitive multi-touch screen supports glove touch, water rejection, 2mm hard tip stylus Optional digitizer with IP54 pen
I/O Interface	USB 3.1 type A x 1, USB 3.2 Gen 2 Type-C w/ DP & PD x 1 RS-232 x 1, option USB 2.0 or Micro SD slot Gigabit Ethernet (RJ45) x 1 Audio headset jack x 1 Nano SIM slot x 2 Optional RF pass-through connector for WLAN/ GNSS/ WWAN x 2 Docking connector x 1 DC-in x 1
Expansion Option	Built-in 2D barcode reader (OCR option) NFC + Smart Card reader 2-in-1 module Fingerprint reader, MRZ reader Snap-on connector easy for customization
Communications	Wi-Fi 6E (802.11ax) Bluetooth V5.3 GNSS (GPS/ GLONASS/ BeiDou) Optional 4G LTE/ 5G (Sub-6G)
Camera	2MP front camera 8MP auto focus rear camera with LED flash
Power	AC adapter (65W, 100-240V AC, 50/60Hz) 4500mAh hot-swappable Li-ion battery, optional 9000mAh hot-swappable Li-ion battery Support fast charging *The default is for 65W AC adapter, 65W Type-C adapter can be optional.
Security	TPM2.0
