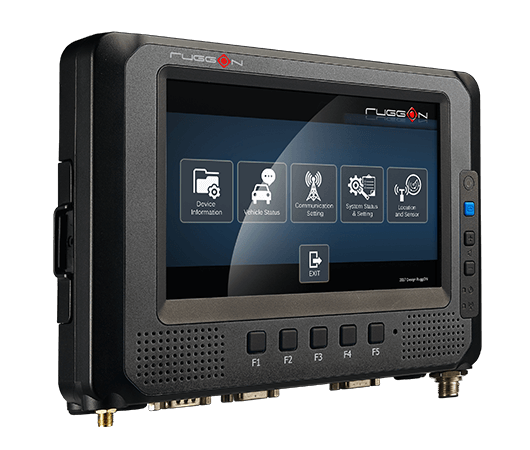

MT7000

...... 7”Mobile Data Terminal

Combining friendly and intuitive interface with vehicle connectivity and power, MT7000 is a purpose-built device for in-vehicle application.

Advanced Fleet Management Solution

Bright 7-inch PCT touch display with intuitive interface
Health readiness via SAE J1939
GNSS with dead reckoning function
Smart power management with ignition sense and backup battery
Vehicle-grade power protection
Navis Ready
Industries : fleet management, warehousing

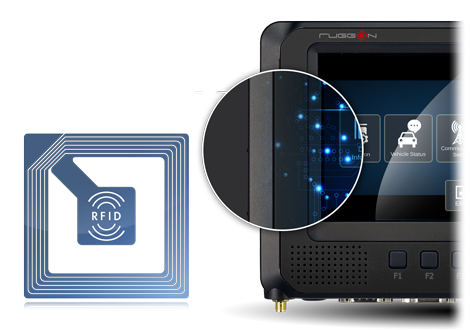

Easy Identify,
Tracking and IoT
Enabled

The MT7000, featuring integrated NFC/RFID, facilitates easy identification and connection with various IoT devices. Its multi-protocol HF RFID tag supports ISO15693 and ISO14443A/B, streamlining fleet border crossing and driver ID verification processes.

Smart Power
Management

Equipped with efficient power management, the MT7000 is protected from surges, noise filtering, overvoltage, undervoltage, and overcurrent, safeguarding the in-vehicle hardware. Its UPS battery ensures additional time to save tracking data or shut down properly during power loss.

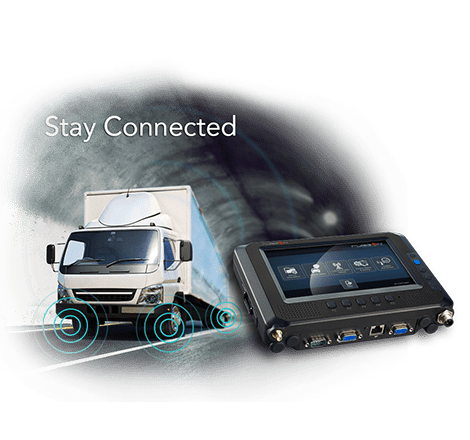

Seamless
Connectivity for
Smoother Operations

The MT7000 offers top-tier connectivity with Wi-Fi 802.11 a/b/g/n/ac, GPRS/HSPA+/LTE, and Bluetooth V4.0 class 2. It supports concurrent multi-GNSS reception of GPS/QZSS, GLONASS, and BeiDou for precise positioning. The dead-reckoning function ensures continuous tracking in tunnels, canyons, and overpasses.

User Friendly
Interface

Using DashON management software, the MT7000’s information is easily accessible and configurable, including communication settings, power management, and IO settings. Additionally, a complete SDK is provided for easy customization and extension with software apps.

MT7000 ACCESSORIES

Mounting Kit

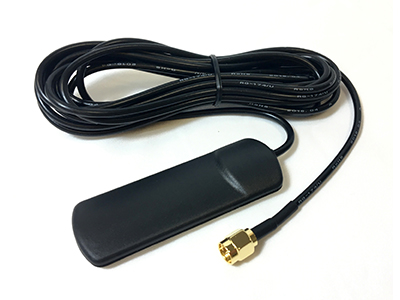

WIFI / BT Antenna

WIFI / BT Antenna for MT7000 & VIKING

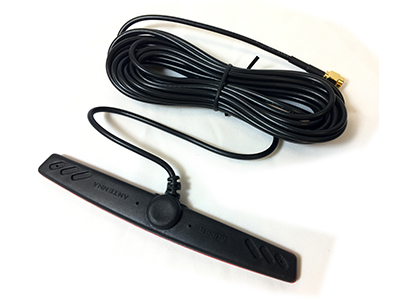

WWAN Antenna

WWAN Antenna for MT7000 & VIKING

SPECIFICATIONS:

System	Intel® Atom™ E3815 1.46GHz Optional Intel® Atom™ E3826 1.46GHz 2GB DDR3L SODIMM; mSATA and Micro SD slot Built-in dual speaker OS supports Windows 10 IoT Enterprise
Display	7″ WSVGA TFT LCD (1024 x 600) 500 nits support auto-dimming Capacitive multi-touch (PCT)
I/O Interface	Gigabit Ethernet (RJ45) RS-232 with power supported x 1, RS-232/ 422/ 485 x 1 USB 3.0 x 1, USB 2.0 x 1 Dual Micro SIM slot x 1 DI x 2 , DO x 2 CAN bus (SAE J1939 supported) x 1 Headset jack x 1 DC-in x 1
Durability	IEC 60529 IP65 (except bottom side I/O) Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4 Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth Operating temperature : -30°C to +60°C (-22 °F to +140°F )
Communication	GNSS (GPS/ QZSS or GLONASS or BeiDou), optional dead-reckoning support Optional Wi-Fi 802.11 a/b/g/n/ac Optional Bluetooth V4.0 Class2 Optional 4G LTE / HSPA+ / GPRS NFC / RFID by request
Function Button	Programmable button x 5, volume adjustment x 2, system on/off x 1
Power Management	9~36 VDC input Vehicle power protection (ISO 7637-2) Ignition sense with delay on/off setting Wake on RTC UPS backup battery
In-Box Accessories	Power cable, GPS/ GLONASS antenna, DB15 to USB cable , DB15 to DIO/ CAN bus cable assemblies
