PM-311B

...... 7” Fully Rugged Tablet

With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B rugged tablet provides a high level of security for public safety needs.

Ruggon Logo
PM-311B_rugged_tablet_

7" Ultra-Bright, Rugged Tablet

  • 7″ capacitive multi-touch with Gorilla glass
  • 1000 nits, optical bonding with AR/AF sunlight readable solution
  • IP65, MIL-STD-810G, 5′ drop resistance
  • NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot swappable battery design
  • A wealth of expansion options fulfill public safety application

Designed to
Secure

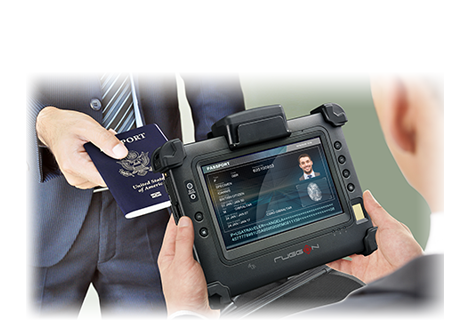

PM-311B is the world’s first tablet capable of reading up to 3 lines of MRZ data, enabling it to capture and process passport, visa, and ID card information. It features a 508-dpi capacitive fingerprint reader for detailed and accurate fingerprint collection, which can be matched to databases.

Best-In-Class
Visibility

Incorporated with 1000 nits display and class-leading optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

Exceptional
Versatility

Equipped with all the connectivity options and data capturing capabilities you need in one compact form factor, PM-311B empowers you to do more.

Enhanced Security
Perimeters

In addition to the FIPS 140-2 certified encrypted SSD, we provide a custom one-button-push function for rapid emergency data erasure using Phoenix’s SecureWipe technology and global standard algorithms.

System
  • Intel® Celeron® N2930 processor 1.83GHz
  • 4GB DDR3L
  • 128GB/ 256GB SSD, optional FIPS 140-2 certified SSD (64~256GB)
  • OS supports Windows 10
Durability
  • IP65 and MIL-STD-810G certified
  • Vibration, shock and 5′ drop resistance
  • Operating temp : -20℃ to +50℃
Display
  • 7″ TFT LCD WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass
  • 1000 nits, Optical Bonding with AR/AF solution
I/O Interface
  • USB 3.0 type A x 2
  • RS-232 x 1
  • Gigabit Ethernet (RJ45) x 1
  • Audio jack x 1
  • Micro SD slot x 1
  • Micro SIM slot x 1
  • Docking connector x 1
Expansion Options
  • MRZ reader+ MSR 2-in-1 module
  • 2D barcode reader + MSR 2-in-1 module
  • Fingerprint reader (capacitive type, 508 dpi)
  • 2D barcode reader (OCR option)
Communications
  • NFC
  • Wi-Fi 802.11 a/b/g/n/ac
  • GNSS (GPS, GLONASS, optional BeiDou)
  • Bluetooth V4.0 + EDR
  • Optional 4G LTE
Camera
  • 2MP front camera
  • 8MP auto focus rear camera with LED flash
Power
  • AC adapter (65W, 100-240V AC, 50/60Hz)
  • 3200 mAh, 7.2V standard battery
  • Optional 4200mAh hot swappable battery
Security
  • TPM 2.0
  • Phoenix SecureWipe by request
