VIKING

...... 7” Mobile Android Data Terminal

With high-performance and functionality, VIKING is the ultimate fleet management solution you should resort to.

High-Tech 7-Inch Touchscreen

Bright 7-inch PCT touch display with intuitive interface
Ready to use auto-dimming function
Health readiness via CAN bus
Diverse wireless connectivity for field usage
Built-in NFC reader
Smart power management with ignition sense and backup battery
Android 12 with Google Mobile Services certified

even More Powerful
Performance

Equipped with a Qualcomm Snapdragon 660 octa-core processor and running Android 12, the VIKING offers reliable, high-performance system efficiency for daily use.

Ready for Fleets

The VIKING supports Raw CAN bus and optional SAE J1939, keeping your vehicle status monitored to prevent downtime. Built-in GNSS and NFC enable driver identification and vehicle tracking. With Google Mobile Services (GMS), you have access to Google Play Store and Google Maps.

Easy Connect on the
go

Capable of 4G LTE, Wi-Fi 5, and Bluetooth 5.0, the VIKING acts as a gateway for multiple devices, supporting simultaneous voice and file transmission for efficient fleet management.

Multifunctional as
Ever

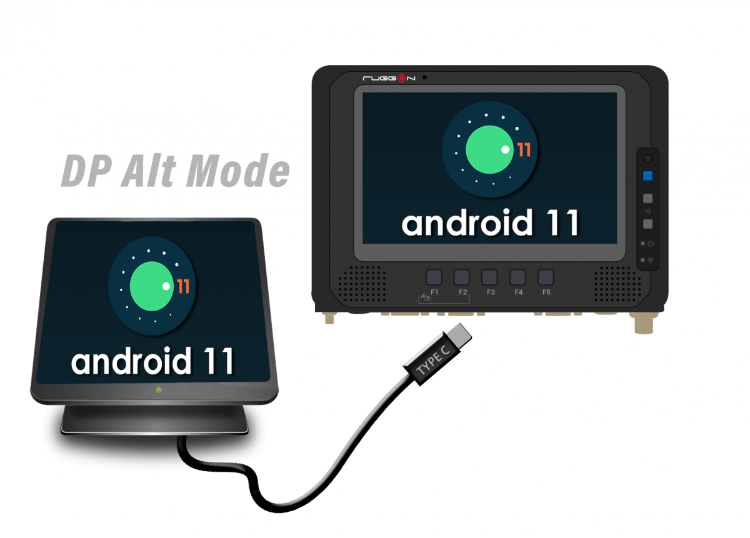

In addition to the I/O interfaces of its predecessor, the new VIKING features one USB Type-C port with DisplayPort Alt mode enabling an extra display wherever required.

VIKING ACCESSORIES

Mounting Kit

WIFI / BT Antenna

WIFI / BT Antenna for MT7000 & VIKING

WWAN Antenna

WWAN Antenna for MT7000 & VIKING

SPECIFICATIONS:

System	Qualcomm® Snapdragon™ 660 Octa-Core, 1.9GHz 4GB LPDDR4 SDRAM, 64GB eMMC storage Built-in dual speaker OS supports Android 12, Google Mobile Services (GMS) certified
Durability	IEC 60529 IP65 (except bottom side I/O Vibration : MIL-STD-810H Method 514.8 C2/C4/C6 Shock : MIL-STD-810H, 40G at 11ms Terminal/ Sawtooth Operating temperature : -20° C to +60° C
Display	7”TFT LCD WSVGA (1024 x 600), capacitive multi touch (PCT) Sunlight readable display supports auto-dimming
I/O Interface	USB 3.1 type C x 1 (DP Alt Mode supported), USB 2.0 x 2 RS-232 with power supported x 1 RS-232(TX/RX) x 1, RS-422 x 1, RS-485 x 1 Gigabit Ethernet(RJ45) x 1 Audio headset jack x 1 Micro SIM slot x 2, Micro SD slot x 1 CAN bus, or CAN bus module (support SAE J1939) DI x 2, DO x 2 DC-in x 1
Communications	WIFI IEEE 802.11 a/b/g/n/ac Bluetooth V5.0 GNSS (GPS / GLONASS / BeiDou/ Galileo) 4G LTE / WCDMA / GSM NFC reader
Power	9~36 VDC input Vehicle power protection (ISO7637-2) Ignition sense with delay on/off setting UPS backup battery
Certifications	CE, FCC, E-Mark
