VULCANX

...... 10.4” Vehicle Mount Computer

Operable in any ambient light conditions, the vehicle mount VULCAN X fulfills the cutting-edge demands of diverse industries with extreme durability and compatibility for future challenges

Most versatile and efficient Vehicle Mount Computer In its class

Outdoor display optimizes visibility for day or night
The screen defroster option for cold storage applications
IP66, MIL-STD 810H and IEC-60721-3-5 5M3 certified
Supports CAN bus 2.0B, SAE J1939
5G ready and WiFi supports fast roaming
Rich I/O design for maximum utilization
Smart power management with wide power input to fulfill diversified applications
Multi format video input option
Navis Ready
Industries : container port, warehousing and agriculture

Looking into the
Future

As digitization and automation advance in industrial applications, 5G readiness is now essential for RuggON VULCAN X. Supporting fast Wi-Fi roaming, this vehicle mount connects all nodes of a fast and smooth autonomous guided vehicle (AGV) network.

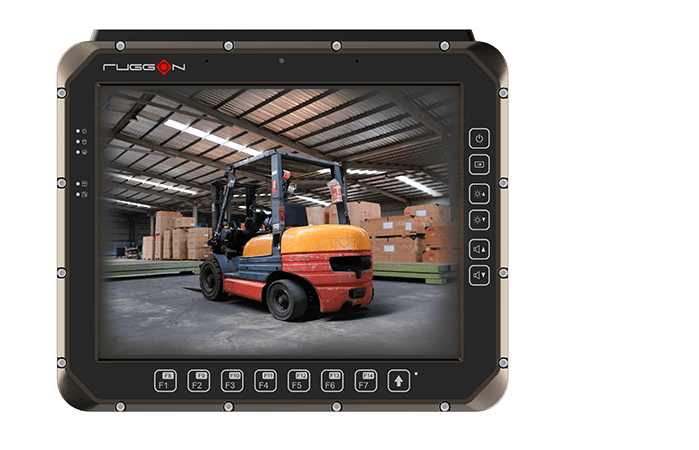

Making Onsite
Maneuver Reliable

Precise location positioning without downtime on cranes and forklifts is possible with VULCAN X. With 9-60 VDC, Bluetooth V5.0, Wi-Fi, and optional GPS, it is designed for material handling. Auxiliary RFID or barcode scanners can easily plug into RS-232 ports for power recharge.

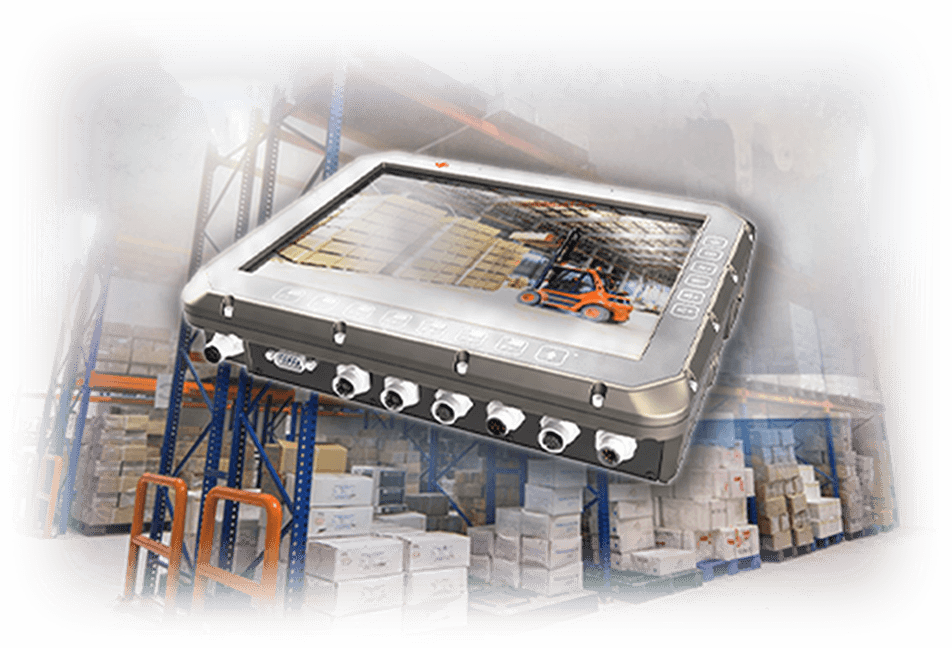

Testing to the Limits

Morphed to endure outdoor applications prone with shock and vibration, VULCAN X can sustain operations from day to night and with the threat of salt erosion and fog/frost interference. Certified to MIL-STD-810H, the vehicle mount is further manufactured with robust metal connectors to withstand oil and grease.

Moving towards
Smartness

With DashON, VULCAN X allows easy definition of up to 14 function keys. It features robust and reliable M12 connectors to prevent user confusion and incorrect cabling. The 5-wire resistive touch, not fully attached to the display, simplifies maintenance. The intuitive DashON interface enables secure FOTA updates, paving the way for effortless centralized management in the future.

VULCANX ACCESSORIES

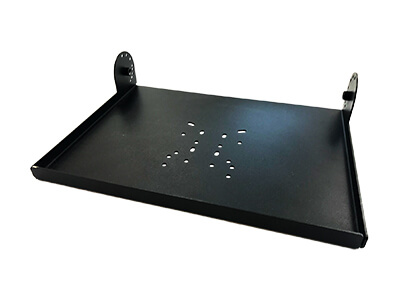

RDK-501

Keyboard tray for VX-601, VULCAN X

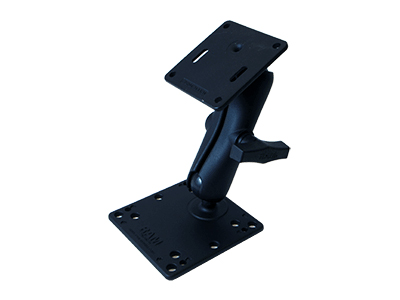

MOUNTING KIT

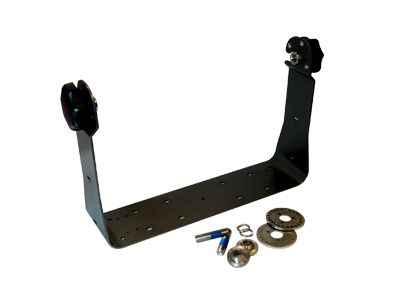

U-shaped Bracket

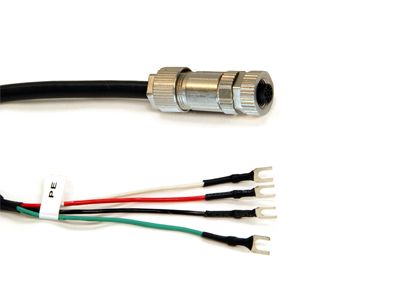

Power Cable

Antenna

SPECIFICATIONS:

System	Intel® Core™ i5-8365UE 1.6GHz, optional Intel® Celeron® 4305UE 2.0GHz 4GB DDR4 SODIMM, expandable to 32GB M.2 2280 SSD Built-in 6-axis motion sensor, dual speaker OS supports Windows 10 IoT Enterprise
Durability	IEC 60529 IP66, IEC 60721-3-5 class 5M3 MIL-STD-810H (Vibration, shock and optional salt fog) Operating temperature : -30° C to +55° C
Display	10.4-inch 1024 x 768 XGA 1200 nits brightness supports auto-dimming 5-wire resistive touch supports defrost / defog function PCT by request
I/O Interface	RS-232 with power supported x 1 RS-232/422/485 x 1, RS-232 x 2, RS-485 x 2 Gigabit Ethernet x 2 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DP Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 Optional CAN bus 2.0B x 2 or SAE J1939 x 1 DI x 2, DO x 2 Mic in x 2, Line out (L/R) x 1 Optional video input x 1 DC-in x 1
Communications	Wi-Fi 802.11 a/b/g/n/ac/v/r/k Bluetooth V5.0 Optional 4G LTE / HSPA+ / GPRS or 5G Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS)
Function Button	Programmable button x 7, brightness adjustment x 2, volume adjustment x 2, display on/off x 1, optional defrost / defog button x 1
Power	9~60 VDC input Ignition sense with delay on/off setting Wake on RTC Internal backup battery for graceful shutdown
