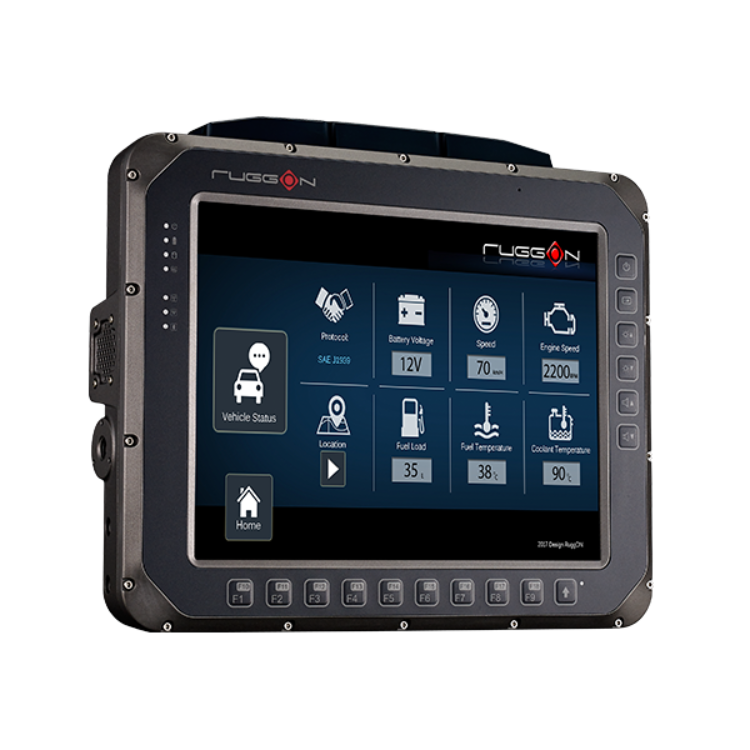

VX-601

...... 12.1” Vehicle Mount Computer

VX-601 gives the finest balance of tough and performance for intralogistics and cold chain logistics.

Versatile & Rugged for Industrial Applications

The high brightness display supports auto-dimming and defroster
Extremely sturdy design to conquer tough task
Health readiness via SAE J1939
Rich I/O design for maximum utilization
Wide power input to fulfill diversified applications
Smart power management with ignition sense and backup battery
Navis Ready
Industries : container port, warehousing, mining and agriculture

Underline the
Visibility of Outdoor

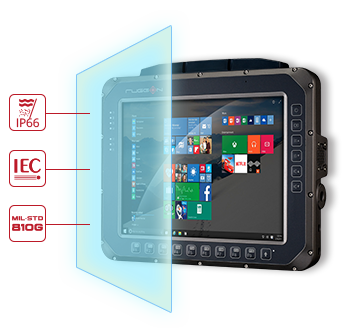

The ultra-bright 1200 nits display dims automatically in low light to save power and avoid eyestrain, even in direct sunlight. A special anti-reflection layer is available to help keep the screen readable.

Ready for Challenge

The VX-601, a 12.1″ vehicle mount computer, is designed for durability and reliability, compliant with IP66, MIL-STD-810G, and IEC 60721-3-5 Class 5M3. Its impressive durability and optional defroster function make it adaptable to challenging conditions, and the screen is operable with gloves on demand.

DashON - Click to
Activate

Featuring the latest communication technology, this device offers mobile workers precise positioning, faster processing, broader coverage, and more stable data transfers, even near buildings or trees. Its connectivity is further enhanced by a switchable dual pass-through connector.

VX601 ACCESSORIES

RDK-501

Keyboard tray for VX-601, VULCAN X

MOUNTING KIT

U-shaped Bracket

System	Intel® Core™ i5 6300U 2.4GHz, optional Intel® Celeron® 3955U 2GHz 4GB DDR3L SODIMM, expandable to 16GB M.2 2280 SSD, SD slot Built-in 3-axis G-sensor, dual speaker OS supports Windows 10 IoT Enterprise
Durability	IEC 60529 IP66 Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3 Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth Salt fog : MIL-STD-810G, Change 1, Method 509.6 Operating temperature : -30°C to +55°C (-22°F to 131°F)
Display	12.1″ 1024 x 768 XGA 700 nits / 1200 nits brightness, support auto-dimming 5-wire resistive touch, support defroster function PCT by request
I/O Interface	RS-232 with power supported x 1 RS-232/422/485 x 1 Gigabit Ethernet (RJ45 ) USB 2.0 x1, USB 2.0/ 3.0 x 1 CAN bus (SAE J1939 supported) x 1 DI x 2, DO x 2 Audio headset jack x 1 Optional video input x 4 DC-in x 1
Communications	Wi-Fi 802.11 a/b/g/n/ac Bluetooth V4.0 Class 2 Optional GNSS (GPS /QZSS or GLONASS) Optional 4G LTE / GPRS / HSPA+
Function Button	Programmable button x 9 Brightness adjustment button x 2 Volume adjustment button x 2 Display on / off x 1 Optional defrost / defog button x 1
Power Management	9~60 VDC input Ignition sense with delay on/off setting Wake on RTC UPS backup battery
