XR10

10.4" MILITARY PANEL PC

Whether you’re in a command center or on the front lines, the RuggOn XR10 10.4″ military panel PC delivers the rugged reliability and cutting-edge performance you need to stay ahead.

CONTACT US
Ruggon Logo

OVERVIEW:

Built to meet rigorous military standards

  • High brightness LCD with Multi-point Resistive Touch
  • Removable storage case for easy maintenance
  • Supports MXM interface to enhance graphic capability
  • MIL-STD-810G tested — can withstand harsh environments
  • MIL-STD-461F — EMC compliant
  • MIL-STD-1275E — surge protection
  • Rugged Durability:

Designed to withstand shock, vibration, and extreme temperatures, the XR10 ensures reliable operation in the most demanding environments.

  • High-Resolution Display:

    The 10.4″ sunlight-readable touchscreen provides clear and vibrant visuals, even in direct sunlight, ensuring optimal visibility at all times.

  • Powerful Performance:

    Equipped with a high-performance processor, ample RAM, and fast storage options, the XR10 handles complex applications with ease, keeping you productive in the field.

  • Advanced Connectivity:

    Featuring a range of connectivity options, including Wi-Fi, Bluetooth, and multiple I/O ports, the XR10 ensures seamless communication and integration with other devices.

  • Enhanced Security:

    With advanced security features, including TPM 2.0 and customizable BIOS settings, the XR10 keeps your data protected and secure.

  • Versatile Mounting Options:

    The flexible mounting solutions allow for easy installation in various vehicles and environments, providing the versatility needed for military operations.

DOWNLOAD SPECS

SPECIFICATIONS:

System
  • Intel® Core™ i7-6822EQ Quad core processor 2.0GHz (Turbo Boost up to 2.8GHz)
  • 8GB DDR4 XRDIMM, up to 16GB
  • M.2 2242 SATA MLC SSD x 2
Display
  • 10.4” TFT LCD XGA (1024 x 768) 1300 nits (typical)
  • Multi-point resistive touch
Expansion
  • MXM 3.0 Type A
  • Mini-PCIe slot x 2
I/O Interface
  • USB 2.0 x 6
RS-232 x 4, Isolation RS-422/485 x 4
  • Gigabit Ethernet x 4
  • GPIO x 8
  • VGA x 1, DVI-D x 1
  • Audio Line-in x 1, Line-out x 1, Mic-in x 1
  • CAN bus V2.0b x 2
  • Optional Video-in via mini-PCIe slot : CVBS video-in, HD-SDI video-in
  • Optional MXM Graphics input
Power
  • 28 VDC Nominal input
  • Ignition sense with time delay setting
  • Compliance with MIL-STD-1275E
Environmental
  • IEC 60529 IP67
  • MIL-STD-810G : Vibration, shock, salt fog
  • Operating temp : -40° C to +71° C
EMCMIL-STD-461F

The Transformer
Workstation

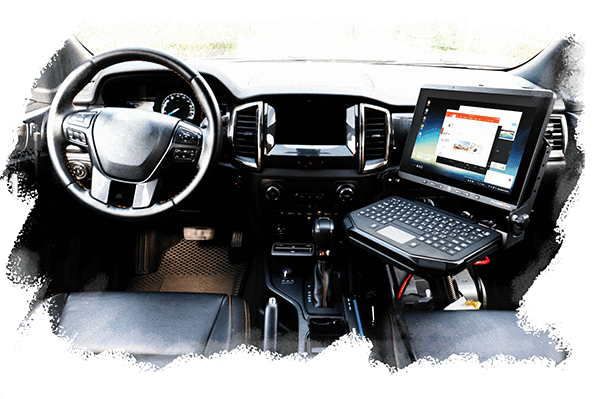

Compact with multiple USB ports, CHASER is the one-stop work hub developed for real-time mobile missions. Connecting seamlessly to smartphones through compatible DeX while supporting diverse external devices, CHASER easily realizes in-vehicle multi-tasking environment in a snap of time.

Safe and Stress-Free on the Road

Reducing eye strain with anti-reflective coating and narrow bezel design, the large touch screen makes long-time operation possible and safe on the road with a uniquely and purposely designed black-out button to ensure driver and information safety at any critical moment. The USB port design at top is specifically intuitive and user-friendly for easy plug in/out of any USB token.

Fast and Safe
Installation

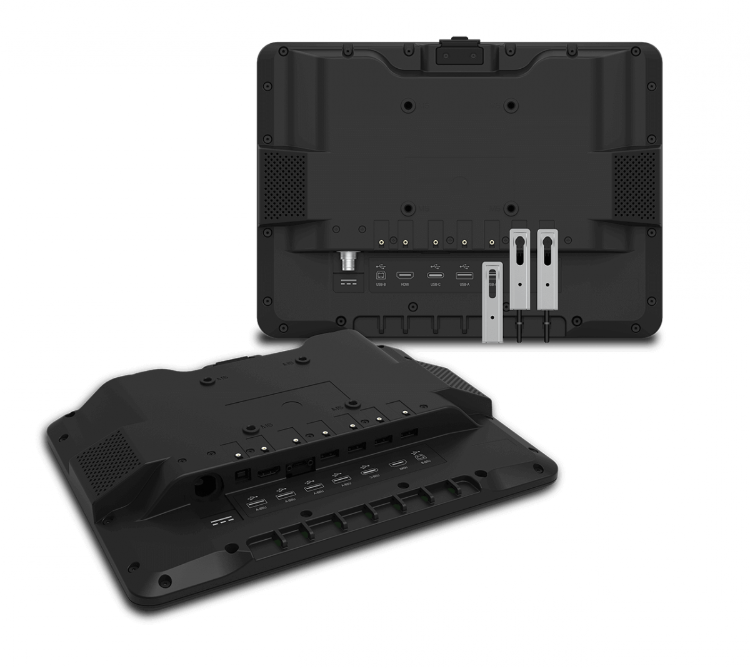

CHASER comes with secure mounting design and convenient downward cable routing for user-friendly installation. The pre-reserved VESA pattern holes and smart-lock brackets for cable securing prevent loose of the monitor and unexpected disconnection of external devices.
